ISDT P20 2X500W

SDT P20 2x500W Dual Channel Smart Charger

At Aerobertics we have been dealer of ISDT chargers for a long time. These devices guarantee innovation ('smart'), compactness, user-friendliness and this at an interesting price/quality ratio. In their extensive range you will find these same qualities everywhere, and there is a charger for everyone's needs and budget.

High Power Synchronous Dual Channel, with Smart Charging

Smart High Speed Processor delivers parameter interfere toe ach port. Hassle Free with max charging power up to 250W (P10) and 500W (P20) for single port, 2x in total. Choose ISDT, powered by innovation.

Synchronous Parallel charging

Built-In High Speed Processor Synchronous balance two channel charging. Max parallel charging power up to 400W (P10) and 800W (P20). Current 10-16A (P10), 20-35A (P20).

Support USB interface to upgrade firmware

Update via usb-c interface for latest firmware.

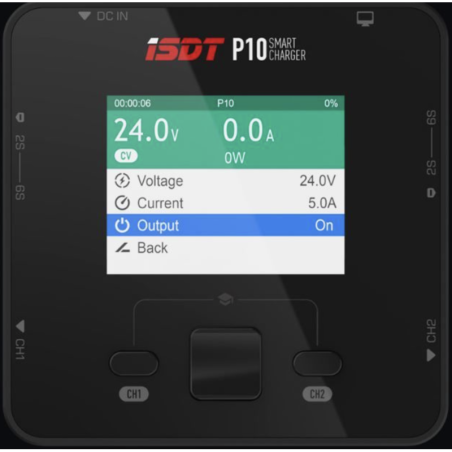

Adjustable digital power supply

The CH1 of the charger can become a DC power supply. In adjustable digital power supply mode, the Max. power is 120W (P10) and 150W (P20).

CC: 0.2A-5A (P10), 1.0-5A (P20).

CV: 5-24V (P10), 2-30V (P20)

Lights off in the dark

scOS 2.0 new dark mode feature. Suitable for low light scenario, as well as heavy sun light scenario.

FEATURES

• Input voltage: DC 10~34VOutput voltage: DC 1~34V

• Max. input current: 35A

• Charging current: 0.2~20.0A x2

• Max. charging power: 500W x2

• Balance current: 1.5A/Cell Max

• Discharging current: 0.2~1.5A x2

• Max. discharging power: 15W x2

• Abnormal voltage alarm: Support

• Incorrect cell count setting alarm: Support

• Supported battery types and cell count:

LiFe, LiIon, LiPo 1-8S ;

LiHv 1-7S ;

Pb 1-12S ; NiMH/Cd 1-16S

• Parallel charging power and current: 800W/35A

• Parallel discharge power and current: 30W/3A

• Working temperature: 0~40℃

• Storage temperature: -20℃~60℃

• Dimension: 105x105x47mm

• Weight: About 350g
