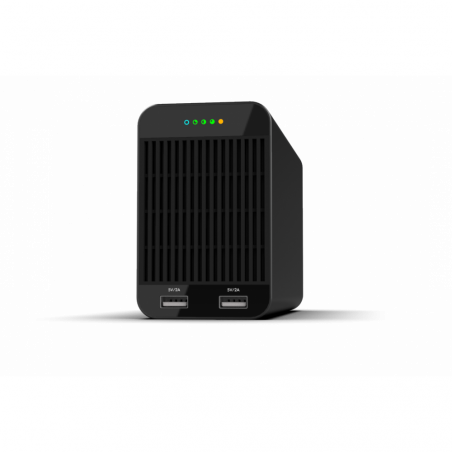

ISDT SP2417 power supply

DESCRIPTION

ISDT SP3060 SMART POWER, power supply 24V - 17A -400W

Hidden handle design - Foldable hidden handle, Easy to use, beautiful and sturdy.

Smart interconnection - Fully compatible with BattGO® innovative, information interconnection technology, Information exchange, unimpeded passage, Full-featured protection, rock-firm strength.

High cooling efficiency system -  Convection cooling air duct design, Initiative cooling by high speed ball bearing fan, Up to 93% efficient energy conversion and powerful.

Aluminium alloy shell - Integrated aluminum magnesium alloy shell, sturdy and durable.

FEATURES

• Input voltage range: AC 100-240V 50/60Hz

• Max input current: 12A

• Output voltage range: DC 21-29V(Adjustable by BattGo link, at the moment possible by T8 and T6 charger)

• Output voltage factory default: DC 24V

• Rated output current: 60A

• Peak output current: 65A

• Output power: 1800W @150V-240VAC / 720W @100V-150VAC

• Efficiency: =93.2% @220VAC @65A

• Power factor: =0.99 @ 220VAC @50A

• Start delay: 3-10s

• Output connector: IC3 (compatible with EC3)

• Working temperature: -10°C - +45°C

• Working humidity: 5%~95% relative humidity(no condensation)

• Size: (L×W×H) 115×110×257mm

• Weight: 3.2Kg
